BRIEF INTRODUCTION:

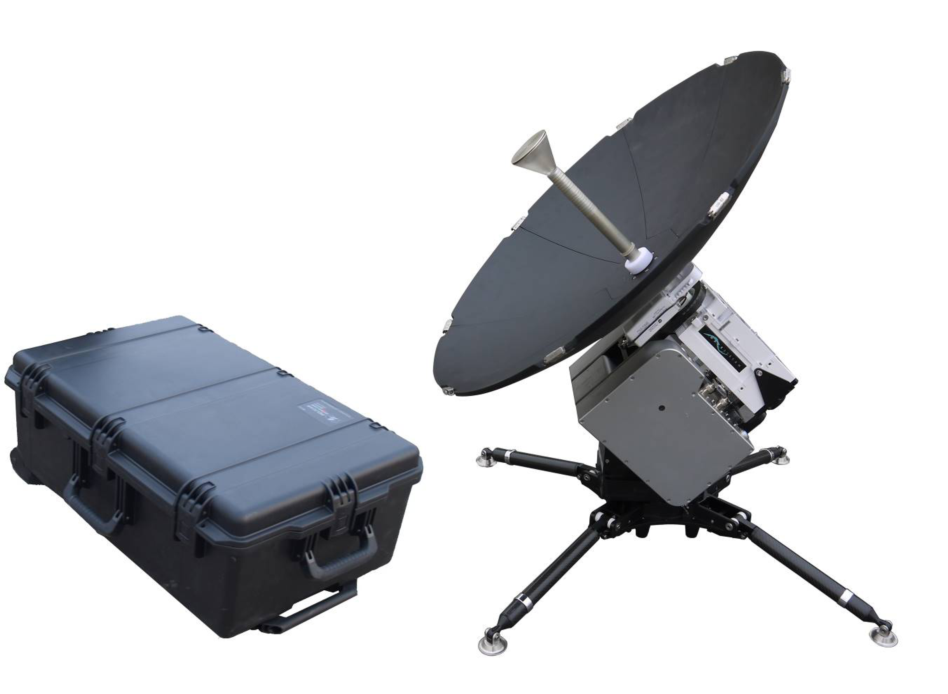

Starwin 0.8m flyaway antenna is a Ku-band satellite communication antenna system of super portable automatic pointing. This system has the characteristics of super portable, automatic operation and strong environmental adaptability. It is mainly designed for users who require more stringent portability of equipment.
The system is equipped with an equivalent aperture of 0.8m high performance prime focus carbon fiber parabolic antenna and a ring-focus feed system. The ring-focus feed is designed with an integrated structure and can be configured with 40WBUC, which can meet the medium-capacity communication requirements of general users.
The whole antenna system consists of 3 parts: 0.8m reflector system, feed system and pedestal system. It is easy to disassemble and assemble without any tools.



DETAIL:

1. Super Portability: The system adopts single-box storage, and the total weight is less than 32kg (Include the 40W BUC) in carrying state. The carrying case is safe and reliable, which can be pulled and lifted, and the weight of the main host is less than 17kg (Exclude the BUC and transport box).
2. Installation Fast: The antenna is divided into three parts: the host, the reflector panel and the feed. It only needs to install the reflector panel and the feed on the host. The whole installation process does not need any tools, and the operation is very simple and fast.
3. Omnibearing Searching: The system is equipped with a high reliable three-axis compass to realize 360° omni-directional satellite searching. Henceforth, the antenna is no longer required to be placed south. At the same time, under the complex geological environment (such as iron ore), the antenna can be set up to work in the tiltmeter mode which is placed south.
4. Simple Operation: Automatic working mode, One-key access or wireless terminal control makes the operation of the system very simple and convenient, and it has perfect manual function, which greatly improves the availability of the system.
5. Excellent Wind - Resistant Performance: The main reflector adopts the prime focus center connection mode, with a very low working height and an optimized center of gravity, which ensures that the antenna system has superior structural wind- resistant stability performance. It is superior than domestic and foreign manual or auto flyaway antenna in wind - resistant performance.
6. High Water-Resistant Performance: The antenna adopts the control seating on the Elevation working mode and the quatrepod structures. It has water-resistant performance., and the maximum wading depth is no less than 15cm.

7. Multi-Control Platform: It adopts multi-operating system platform (Windows, Android, iOS), multi-terminal mode (mobile phone, tablet, computer) to control by wired or wireless mode (wireless mode to support DHCP function). It adopts man-machine graphical interface of browser mode without installing third-party software.
8. BUC Monitoring: The interface of the antenna control system is equipped with BUC monitoring function area, which can conveniently check the real-time working state of BUC, such as output power, working temperature, 10MHz locking and other parameters, and can control BUC.
9. BUC Tx Control: The control system can automatically control BUC's Tx opening or closing according to the antenna's operation status, so as to prevent the antenna from interfering with other satellites in the process of satellite searching.
10. Integrating Geographic Information: The control system adopts pre-invocation, active inquiry, manual input and GPS-aided positioning. That is, the control system has built-in longitude and latitude database, which can input city names directly in the control system interface and automatically acquire geographic information. The system has higher availability.
11. Geographic Information Output: The control system supports the function of geographic information delivery. It can output geographic information data in GPS format and send it to external modem or terminal equipment.
12. Wide-Range EIRP: The system is equipped with Ku-band BUC of 2 ~ 40W, and EIRP can reach 44.2 ~ 57.2dBW, realizing medium-capacity communication capability under small aperture antenna.

13. Full Voltage Operation: The system uses 90 ~ 264 VAC power supply mode, which can be used globally, and can provide stable and reliable power supply for BUC and LNB.
14. Quatrepod Support: The structure is novel, compact, light and reliable, which is conducive to the erection of complex terrain, and has strong wading capacity, which is not less than 15 cm.
15. Integrated Modem (Customization Function): The small modem board can be integrated inside the antenna chassis, which reduces the cable connection and makes it highly integrated.



DATASHEET:Starwin 0.8m Ku & Ka Band Auto Flyaway Antenna

Starwin 0.8m Ku & Ka Band Auto Flyaway Antenna Datasheet
