BRIEF INTRODUCTION:

Starwin 0.8m intelligent assistance antenna is a new generation of backpack satellite communication system. This system has the characteristics of light weight, easy and reliable operation, complete VSAT application, integration and so on. It is mainly designed for users of simple Internet applications such as scientific research exploration, network media, emergency communication, etc. This product series includes the following specific models:
       SW80K: Work in Ku band, maximum support 40W BUC, linear polarization, can achieve integrated terminal applications, support medium capacity communications.
       SW80A SCPC: Works in Ka band, maximum supports 20W BUC, circular polarization, integrates terminal applications and supports large capacity communication.
The SW80K system is equipped with a Ku-band prime focus carbon fiber parabolic antenna, which equivalent aperture is 0.8m, and an efficient dielectric feed system. At the same time, SW80K system is equipped with main control system, embedded software, three-axis angle sensor, GPS positioning, beacon receiver, local OLED touch screen, integrated power module, wireless access, active heat dissipation and other intelligent equipment. With the help of digital indication and acoustooptic prompt on the host screen, it can realize more fast and accurate manual satellite searching. Its operation is simple, convenient, efficient and reliable, and the speed of satellite searching is much faster than that of automatic satellite searching products. The application of intelligent assistant concept has transformed portable antenna from mechatronics product to pure electronic product, thus greatly improving the reliability of the product.

DETAIL:

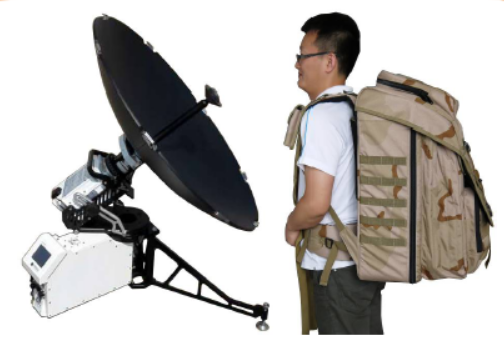

1. Super Portability: The system adopts single-box storage, and the total weight is less than 20kg (Include the 40W BUC) in carrying state. The carrying case is safe and reliable, which can be pulled and lifted, and the net weight of the antenna is less than 14kg (Exclude the BUC and the Business board).
2. Super Simplicity: With the help of intelligent assistant systems such as triaxial angle sensor, beacon receiver, dual-mode positioning and OLED touch screen, fast and accurate satellite searching is realized, which greatly shortens the time of satellite searching and improves the correctness and accuracy of satellite searching.
3. High reliability: The antenna operates in the manual satellite-searching mode assisted by intelligent control system, which is a pure electronic product. It not only has shorter time for satellite-searching, but also greatly improves the reliability of the system.
4. Universal Pedestal: In order to meet the requirements of different users, different products of 0.6m or 0.8m diameter and Ka or Ku band can be provided for users on the same control system and pedestal.
5. Excellent Wind - Resistant Performance: The main reflector adopts the prime focus center connection mode, with a very low working height and an optimized center of gravity, which ensures that the antenna system has superior structural wind- resistant stability performance, it supports for operation in severe weather conditions;
6. Active Heat Dissipation: In order to meet the working temperature requirement of the terminal board and reduce the internal temperature of the cabinet, the cabinet adopts the forced heat dissipation design, which forms the air flow passage inside, and adopts the anti-raining design at the inlet and outlet.

7. VSAT Application: The system reserved a separate space for installing business terminals such as Modem, effectively realizing highly integrated single-machine VSAT applications, it avoids the shortcomings of portability brought by configuring the terminal box separately.
8. WiFi Access: VSAT system can also provide WiFi and wired RJ45 interfaces to facilitate the access of various business terminals;
9. Local touch screen: The system is equipped with the local OLED touch screen, which can monitor the working status of antenna, BUC and IDU in real time locally without any other terminal intervention, thus greatly optimizing the working efficiency of the human-machine interface.
10. Full Voltage Operation: The system uses 90 ~ 264 VAC power supply mode, which can be used globally, and can provide stable and reliable power supply for BUC, LNB, IDU and other equipment.

DATASHEET:Starwin 0.8m Ku & Ka Band Intelligent Assistance Flyaway Antenna
